HPU is Hydrolysis Resistant Polyurethane. It has excellent resilience property which is perfectly suitable for hydraulic applications.

Rotary Seal R10 consist of common material as BFT part on the OD and energiser O-ring part on the ID. Various material can be used according to the applications. It is double acting seal and it is mainly used for pivoting movement. Custom sizes available to suit your specifications.

Rotary seals are designed to seal the pressurized hydraulic fluid against the atmosphere, preventing leakage and pollution of the environment or to transfer liquids and/or gases from a stationary part into or out of rotating machinery. This is double acting rotary seal with interference of the O-ring on the OD and no Interference of the BFT on the ID.

AU NIPSL is specially used only for pneumatic applications. It acts as a wiper seal from outer side and rod seal from inner side. Retainer Nose with keeps the seal intact inside the small groove provided to fit this seal. It is available in various standard sizes.

TDUO Seals are the replacements of Piston in pneumatic cylinder. Rather designing piston and seals for pneumatic cylinder it is very easy for designers to put this TDUO Seal which acts both as piston with a strong metal base and seals with both side elastomer lips on it . Available in all sizes and can be made according to your requirement.

Cover seals are designed to provide reliable sealing solutions, especially in situations with static seal gaps, pressure variations, or the need to prevent leakage and contamination.

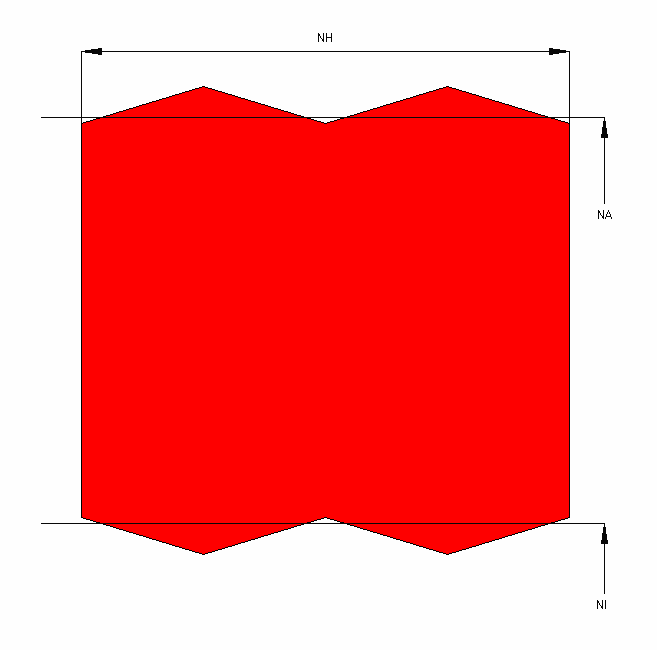

Quad rings nearly have the same sealing principle as the O-ring sealing. However, they provide less friction than the conventional O-ring and there is no spiral twist. It eliminates the tendency to roll in the groove. The sealing is achieved by the diametrical squeeze in a right angled groove. The system pressure creates a positive sealing force.

This is a profile which is an excellent replacement for o-rings and backup ring combinations. For non standard grooves they provide an excellent sealing in high pressure and wear applications.

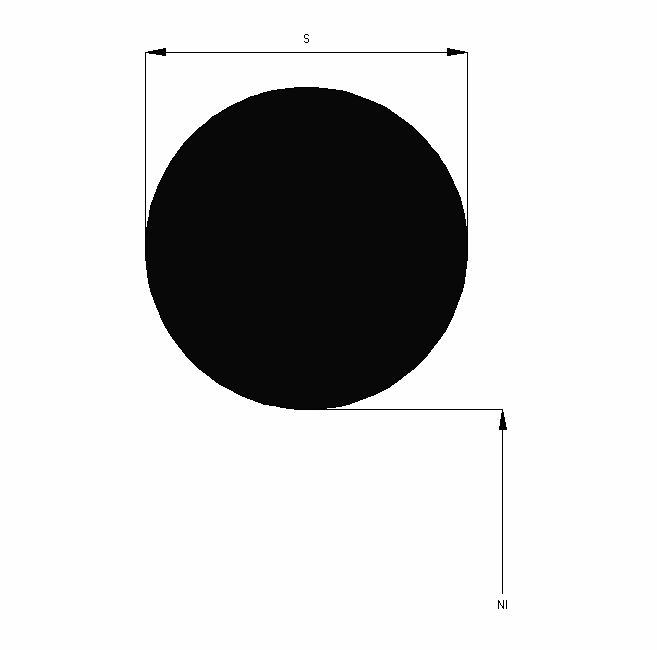

O-Rings are the simplest form of sealing that are used in both dynamic as well as static applications. For dynamic applications they are used in rotary as well as axial applications. The selection of o-rings depends on temperature, pressure and fluid.

Backup rings are anti extrusion rings also known as support rings. They are fitted along with o-rings / piston seals/ rod seals to protect them from extrusion.

Oil Seals are used in machines with rotary movement. The perform two functions, firstly prevent leakage of oil / lubrication from inside and second prevent entry of dust and foreign matter. They are designed as per the temperature and surface speed requirements.

Pneumatic cylinders typically operate at 5 to 25 bar. They operate low pressure and creates the pressure on one side of the piston. They are place between the piston head and the bore.
